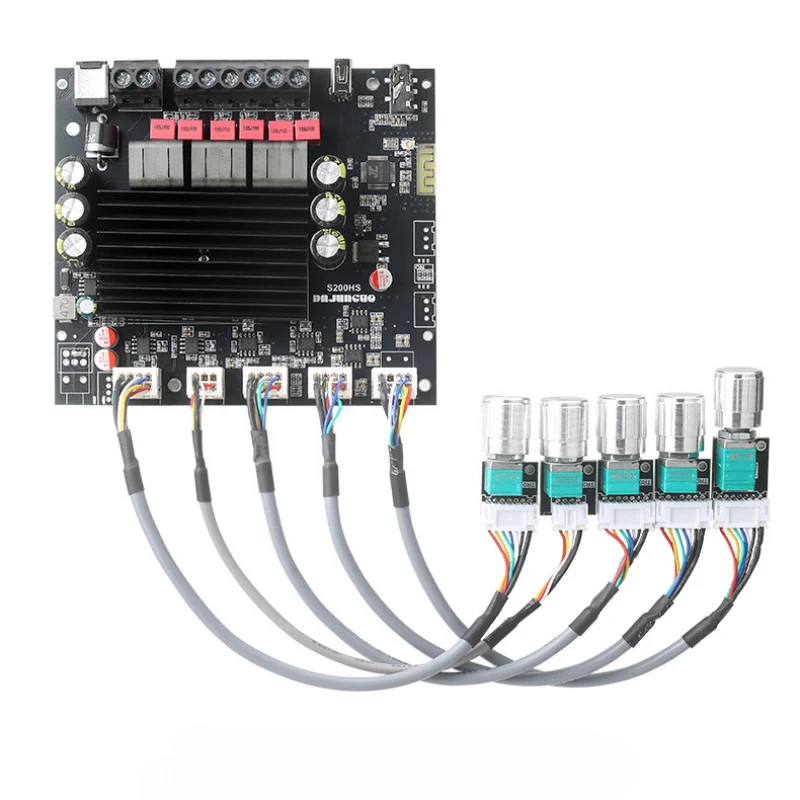

TPA3221 2.1 channel Bluetooth power amplifier board 100W+100W+200W super TPA3116 chip
The power amplifier board is not equipped with a power supply and audio cable, so you need to purchase it yourself.

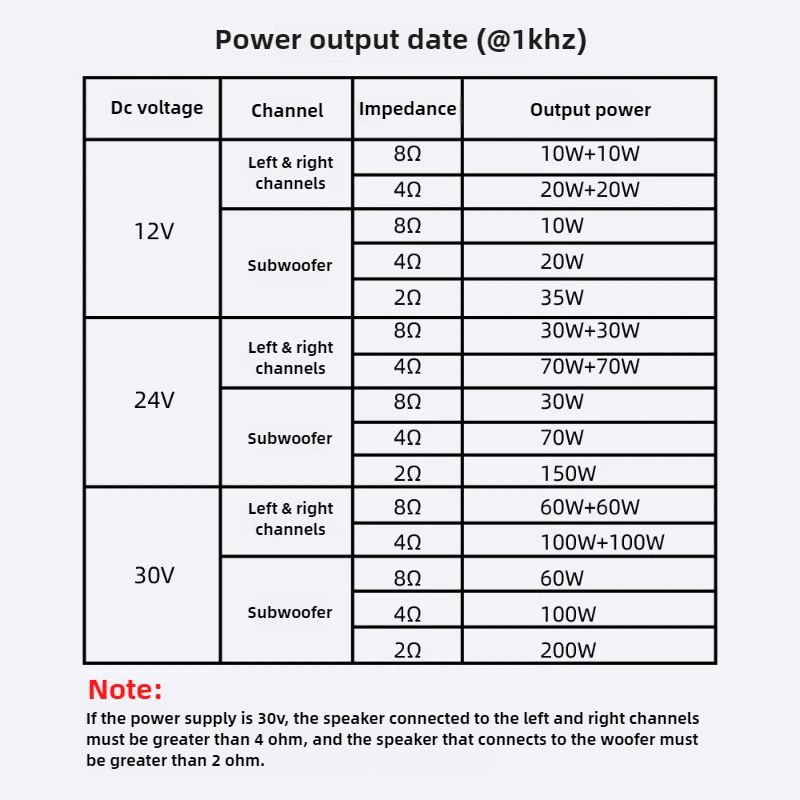

The power amplifier board supports DC12-30V, with a minimum operating voltage of 12V and a maximum operating voltage of 30V.The higher the input voltage in this voltage range, the greater the output power.
Three specifications of DC power adapters are recommended.
12V/5A DC power adapter (common power supply, cost-effective, suitable for low-power speakers below 4 inches.The output power is not large)
24V/6A DC power adapter (common power supply, cost-effective, suitable for low-power speakers below 5 inches, recommended!!)
DC power adapter of 30V/8A or above (the price of the power supply is relatively high, and large output power can be obtained. It is recommended!!!, Suitable for high-power speakers above 5 inches.)
Support wide voltage input: support DC12-30V/5A or more, the higher the voltage, the greater the power.
Power amplifier board instructions for use:
1.In the absence of other external audio sources mounted, the power is turned on and the power amplifier board will default to Bluetooth mode.
2.Find DAJUNGUO AUDIO IN THE Bluetooth LIST OF MOBILE PHONES OR OTHER PLAYBACK DEVICES, SELECT pairing and CONNECT.Note; not even DJG-APP

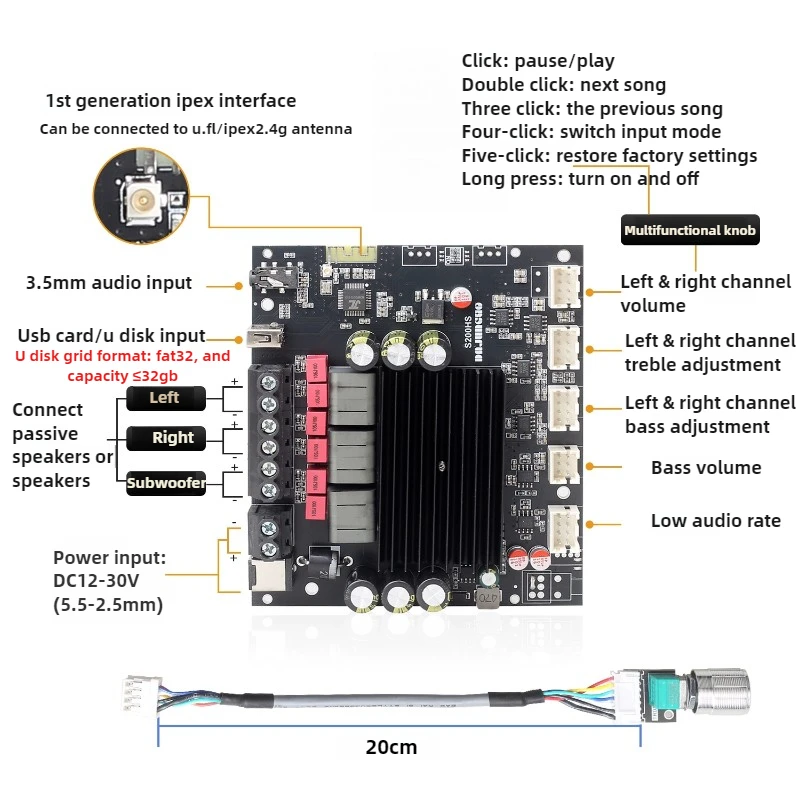

Multi-function knob
Click: Pause/play
Double click: next song
Three strikes: Previous song
Four clicks: switch input mode
Five strikes: Restore factory settings
Long press: low power standby
Introduction to input mode:
Bluetooth MODE: After CONNECTING TO the DC POWER SUPPLY, CONNECT and MATCH: DAJUNGUO AUDIO IN THE BLUETOOTH LIST of THE MOBILE PHONE to PLAY MUSIC.
USB mode: Just prepare a U disk below 32GB, the format is FAT32, and the supported playback formats are MP3, WAV, APE, and FLAC.Lossless bit rate: 1411kbps sampling rate: 44100Hz
AUX mode: This power amplifier board adopts 3.5mm audio signal input.When playing in AUX mode, try to choose an audio cable with good shielding effect.
Reminder: This product has a playback mode memory function. For example, if you use AUX mode this time, after power is off, you will enter AUX mode first on the next power-up; this time you use Bluetooth mode, after power is off, you will still enter Bluetooth mode on the next power-up.
Bluetooth power amplifier board product introduction:

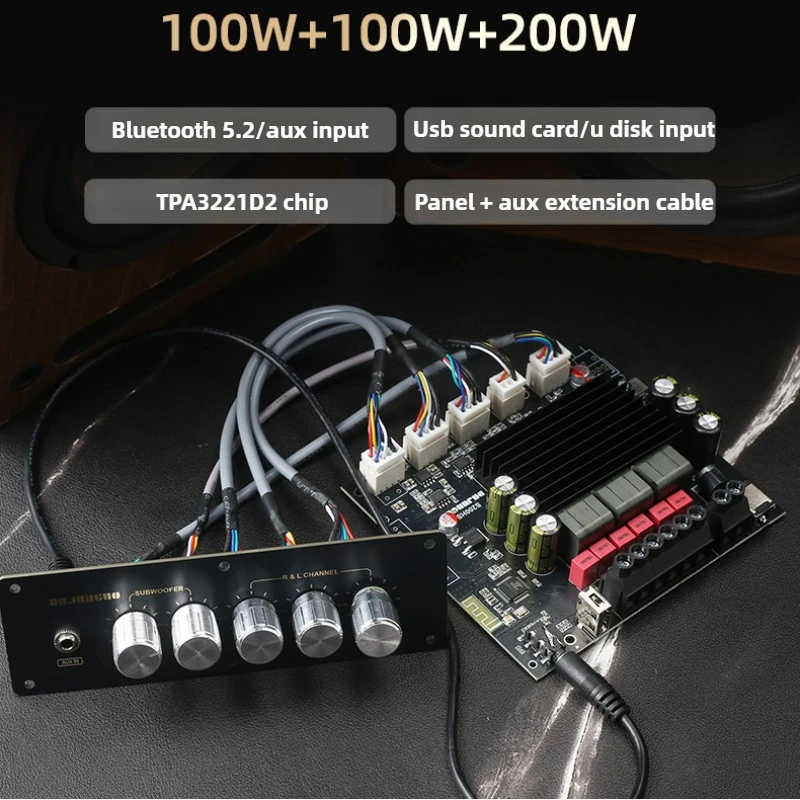

1.High power output: using the original imported TPA3221D2 chip, the output power can be as high as 100W+100W+200W.
2.Multiple inputs: support Bluetooth, AUX and USB connection methods, compatible with various devices.Bluetooth supports SBC and AAC protocols.
Among them, USB supports lossless audio formats such as MP3, FLAC, MAV, and APE.Sampling rate: 44100hz, bit rate: 1411kbps.
Only need to switch between the various input modes through the main knob, which is very convenient.

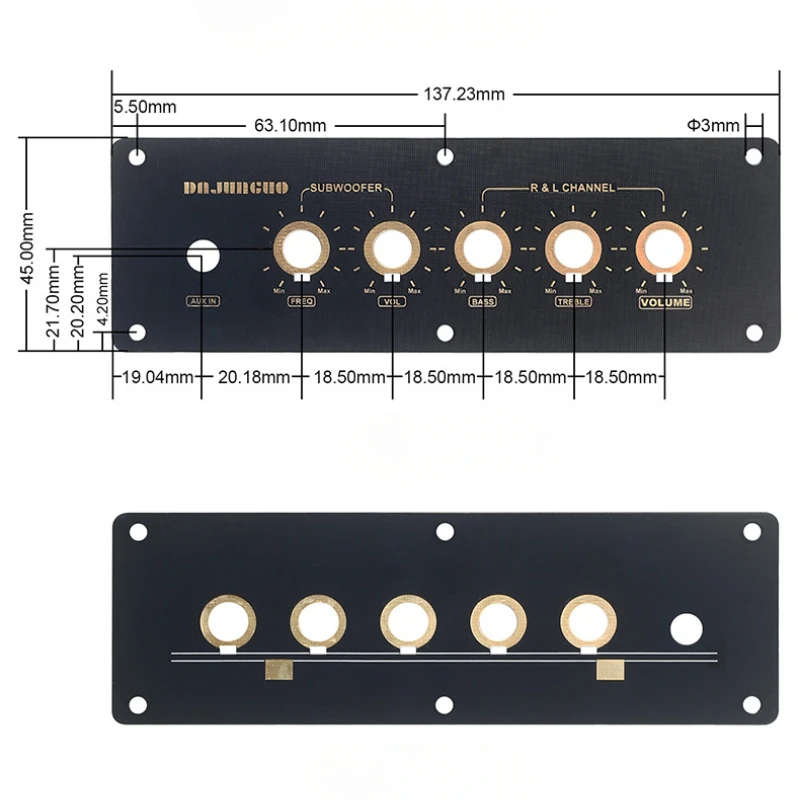

3.Independent tone adjustment: This power amplifier board cancels the design of the “main volume” knob, and adopts the mode of independent adjustment of the left and right channels and the subwoofer channels, that is, the cut-off frequency and volume of the subwoofer channel are no longer controlled by the “main volume knob”, realizing independent adjustment in the true sense.
4.Fever materials, see the real chapter for details:
The Bluetooth power amplifier board adopts 4 imported original TI NE5532 op amps (quiet as the deep sea, pure sound quality), 6 large-capacity black gold capacitors, 10 imported Ina purple robe fever capacitors, digital power amplifier special inductors and other fever materials just to give you a good sound.
Product parameters:
Power amplifier chip: TPA3221x2

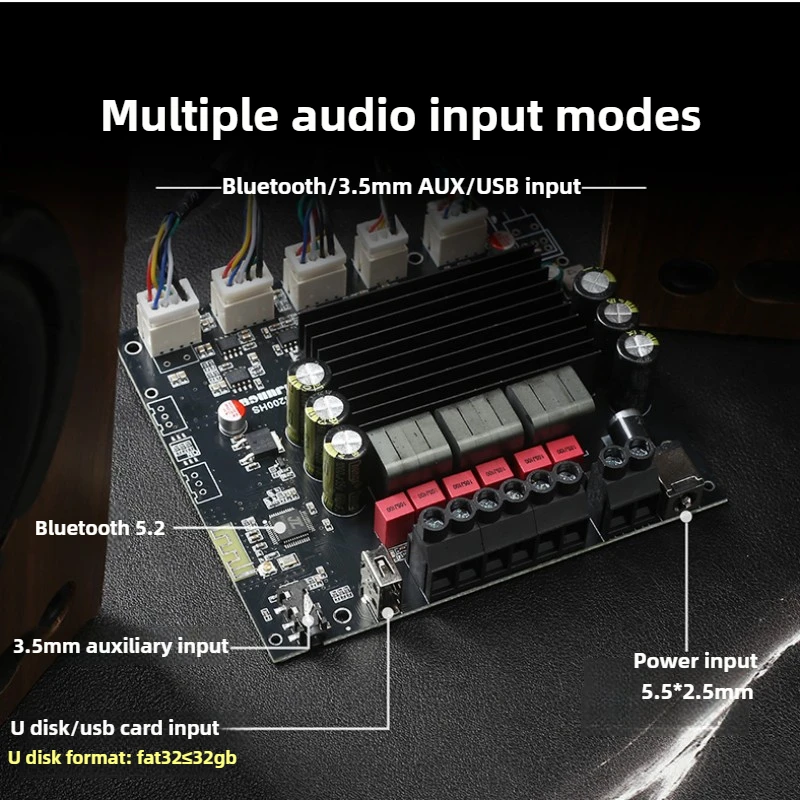

Audio input mode: Bluetooth +3.5mm AUX +USB
Input voltage: DC12-30V, 5A or more
Bluetooth version: Bluetooth version 5.2
Output power: 100Wx2+200W
Applicable speakers: 20-100W, 4-8 Ohm
Whether to support APP control: support (modify Bluetooth name/set password)
USB decoding: WAV FLAC APE MP3
Size: 113*102*28mm

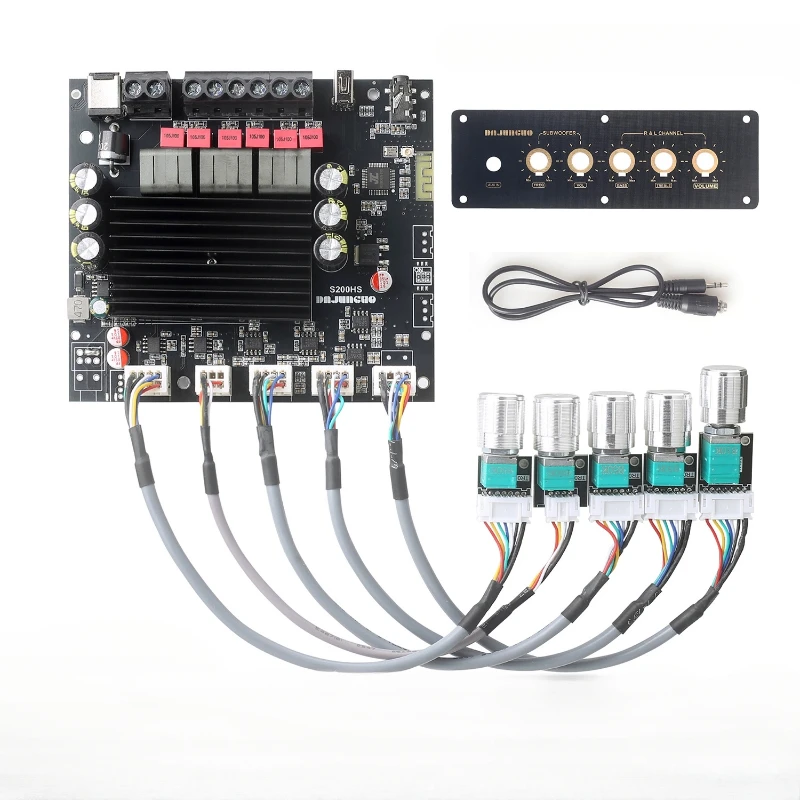

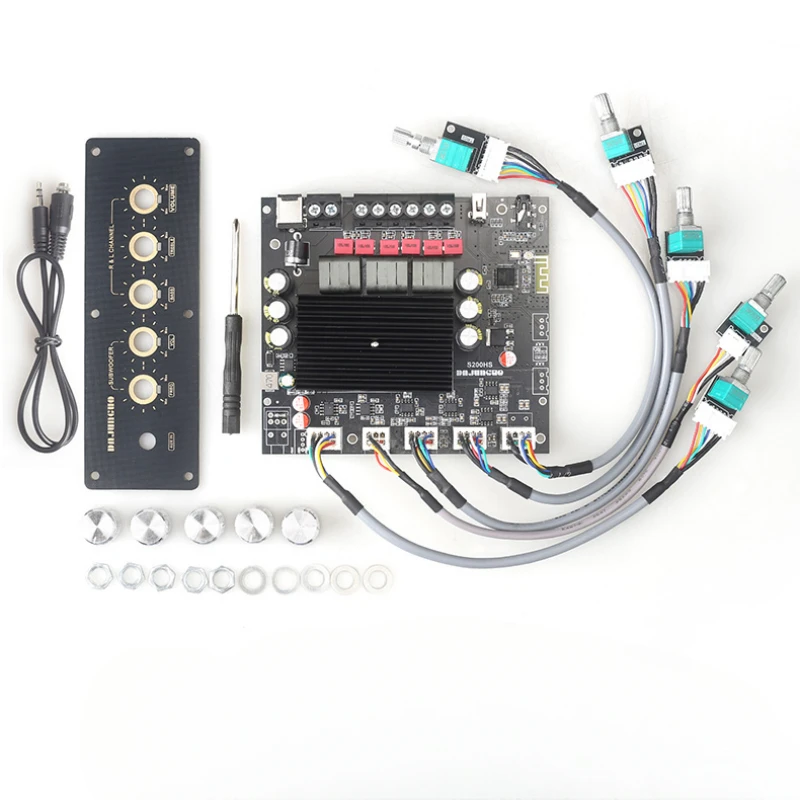

Package included:
1Pcs TPA3221 Bluetooth power amplifier100Wx2+200W
