Description
- High-concerned chemical: None
- RAID Supported: Yes
- Processor compatibility: Intel Xeon,Intel Others,Intel Xeon E Series
- Usage Scenario: Gaming,Audio & Video,Household,Office,Design,Video Production,Industrial Computer,Workstation,Server,Mining,Scientific Computing,3-D Modeling,Video Rendering,MaxCompute,others,HPC
- Back I/O Ports: 1x RJ45
- Support USB Type: USB 2.0,USB 3.0
- Onboard LAN: 1x RJ45
- Number of M.2: 2
- Storage Interface Type: SATA 3,M.2 (NVMe),M.2 (SATA)
- Number of PCI: 2
- Number of PCIe x 1: 1
- Number of PCIe x 16: 1
- PCI – E standards: PCI-E 3.0
- Number Of Memory Slots: 4
- Support Memory Type: DDR4
- Package: Yes
- Maximum Ram Capacity: 128 GB
- Form Factor: Micro-ATX
- Chipset Manufacturer: Intel
- Battery Included: no
- With CPU: No
- Chipset: Intel X99
- Application: Desktop
- Socket Type: LGA 2011-3
- Brand Name: QIYIDA
- Special Features: Cooling Armor
- Origin: Mainland China
Â
Notice：
ALL RAM needs to install in slot (yellow slot)priority
If inserted in the wrong location, it can cause the computer to not start.

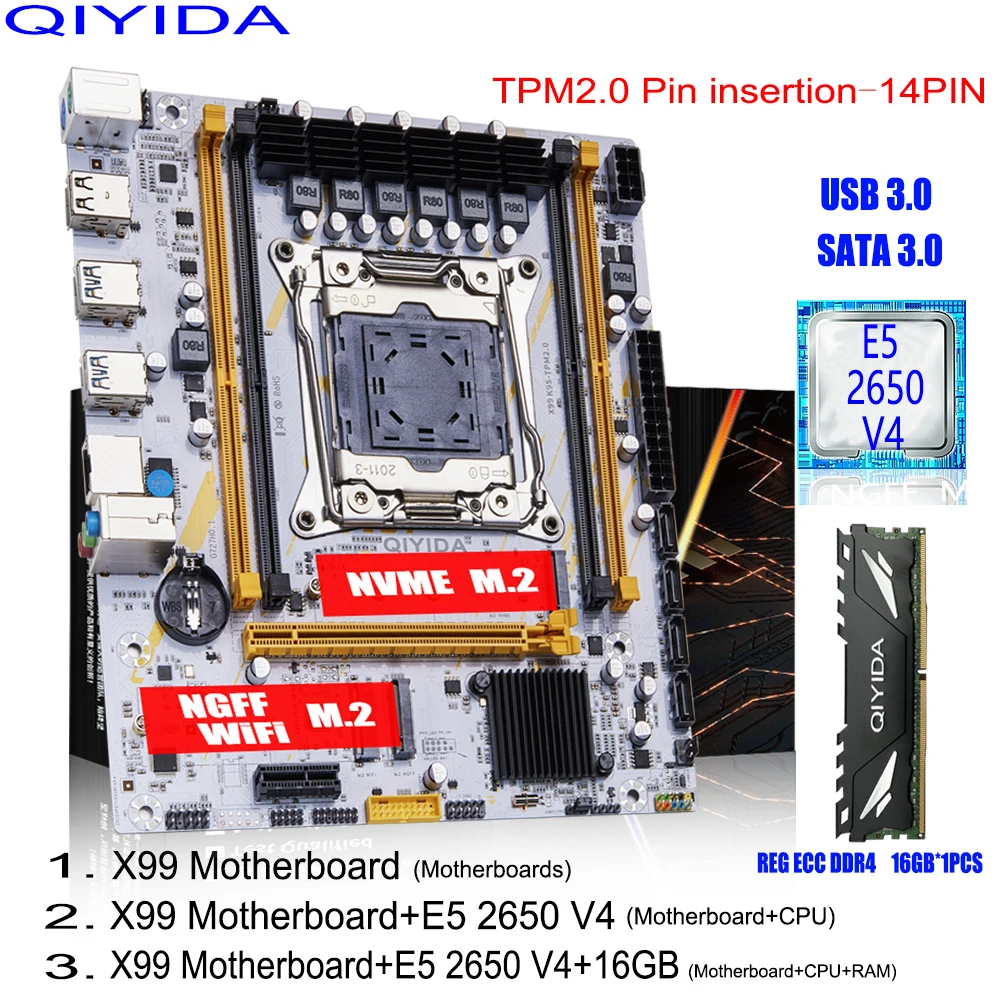

You can choose from three specifications: motherboard or motherboard+CPU or motherboard+CPU+memory
2. (motherboard x1+CPU x1)
Â
3. (motherboard x1+CPU x1+16GB memory x1)
Â
Please choose according to your needs
Â
CPU:
Intel Xeon E5-2650 v4 parameters
Number of cores twelve cores
Number of threads Twenty-four threads
CPU main frequency 2.2GHz
Dynamic acceleration frequency 2.9GHz
L3 cache 30MB
Bus specification QPI 9.6GT/s
Thermal Design Power (TDP) 105W
Memory:QIYIDA
Chip: SEC / HY/ MIC and others (ship at random)
Type: REG ECC
Frequency: DDR4 2133MHz
Capacity: 16GB (1PCS*16GB)
Note ：
that the new old models are sent randomly, the motherboard batches are different, and the appearance may be different.
Mind please don't buy!
Due to different production batch, motherboard might probably have slightly different design, such as different memory slots color or SATA ports position or motherboard version etc. Our aim is to gradually make it more powerful.
We will not make any further notice..

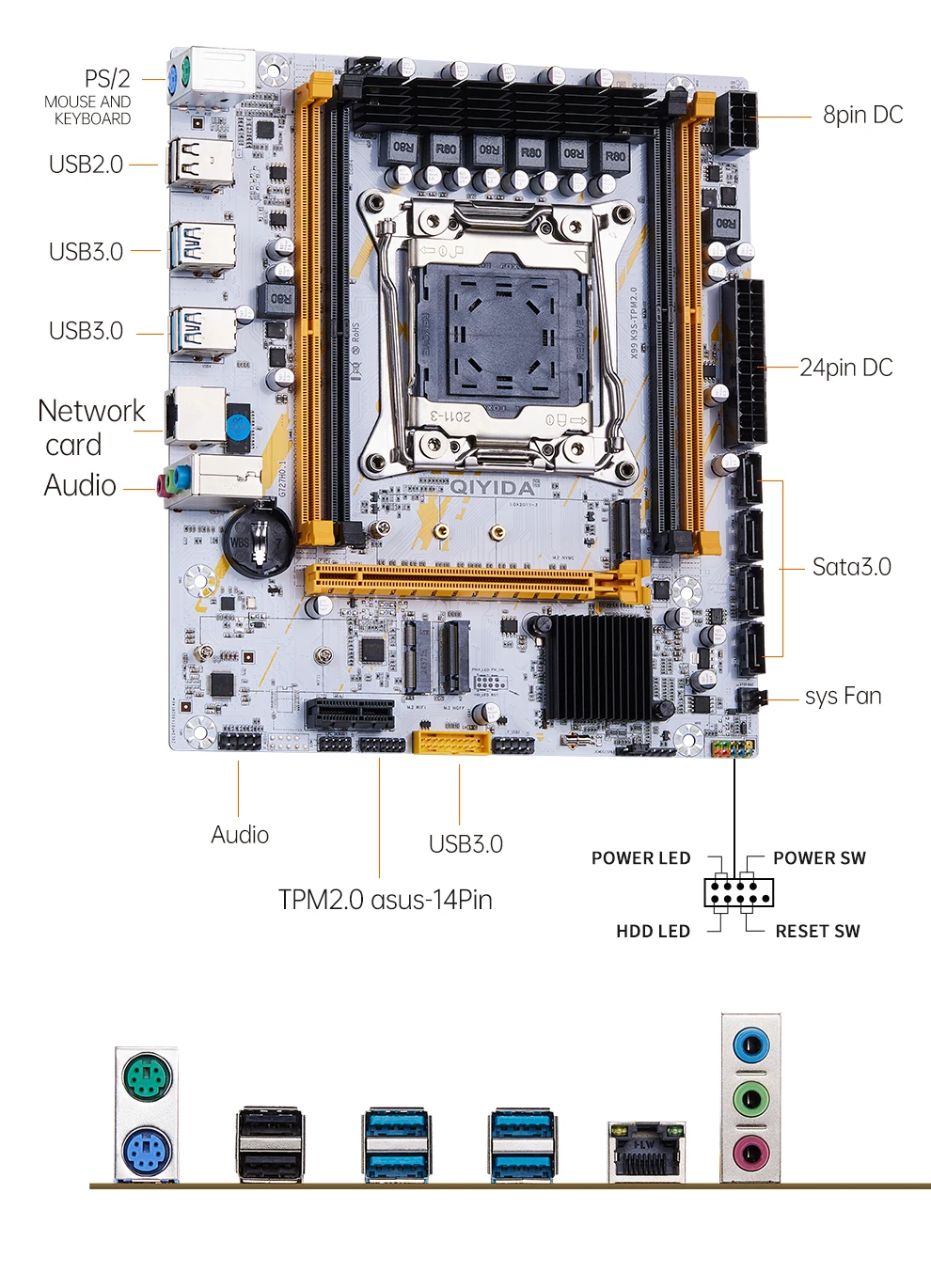

Model:QIYIDA LGA2011-3-E5D4
Condition: Full new
Main chipset: B85/H81/Q87,86etc., random delivery. thank you. If you can't accept it, please don't buy it. Buying means
CPU socket: LGA 2011-3
Structure: M-ATX
VGA socket: PCI-E X 16
Power port: 24Pin+8pin
CPU supported:Support 2011-3 All-series CPU( Include V3, V4 series)
Memory socket: 4* DDR4
Max memory capacity: 4* 16G DDR4 2133/2400MHz/2666MHz/3200MHz
Memory type supported: non-ecc/reg ecc/ecc
Integrated video card: No
Support NVME/NGFF M.2. Note that they need to switch the jumpers on the motherboard
Motherboard dimension: 21.5cm*18.6cm
The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
For the problem of inaccurate temperature control of the test motherboard: the motherboard does not have a temperature control chip, and the software test is a virtual temperature (may be 110°-120°). The actual temperature can be tested with a body thermometer, and the normal use does not exceed 50°.
The black ram slot of motherboard can't works alone.The memory needs to be inserted into the yellow main slot first.
