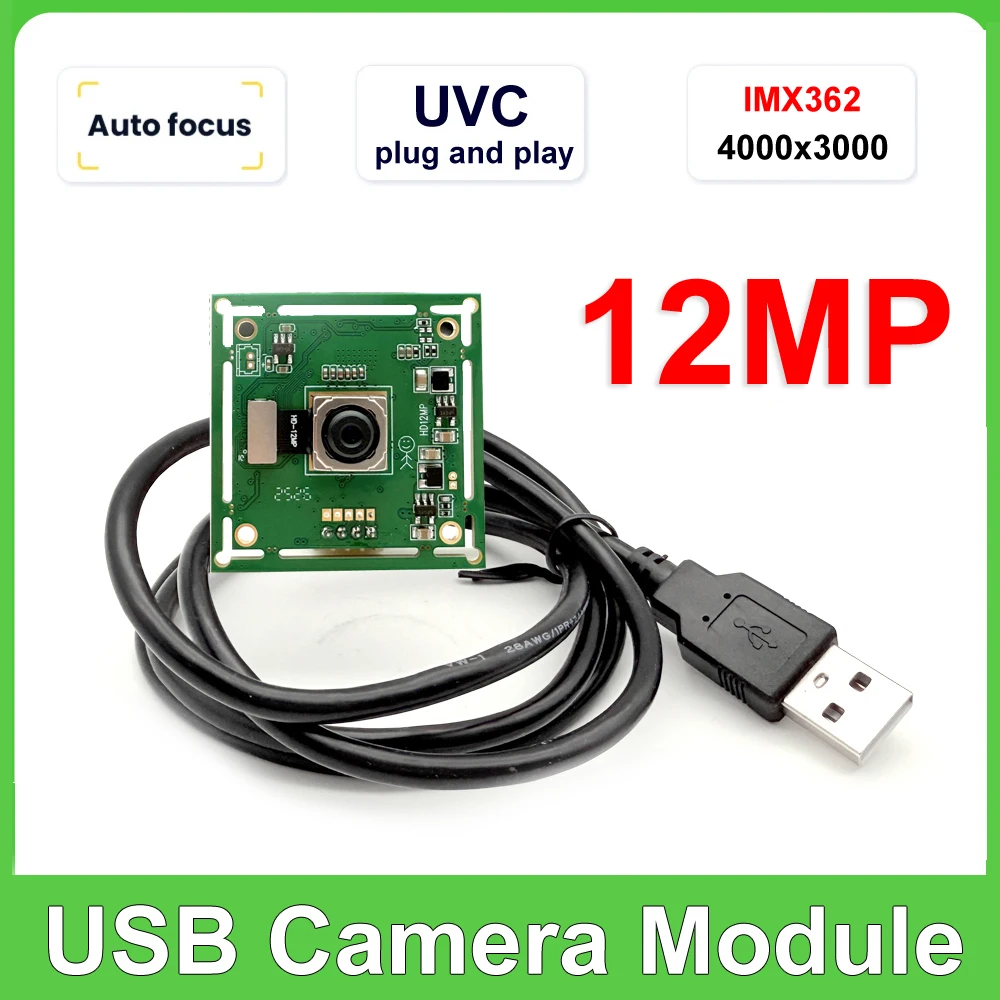

12MP IMX362 USB Camera Module:
1. Use IMX362 Sensor.
2. Mainly used in high-resolution cameras, biometrics, industrial photography, industrial fields, high-definition surveillance and other fields.
3. Application:
HD high-resolution document scanning (A4 paper, invoice, courier, certificate), teaching live broadcast, scene shooting,etc.
PCB(board frame) size 38*38mm,(compatible with 32*32)
The default 1080P resolution, the maximum resolution is 15fps 12MP 4000×3000.You can set the resolution according to the video software. Our products support most common video software.

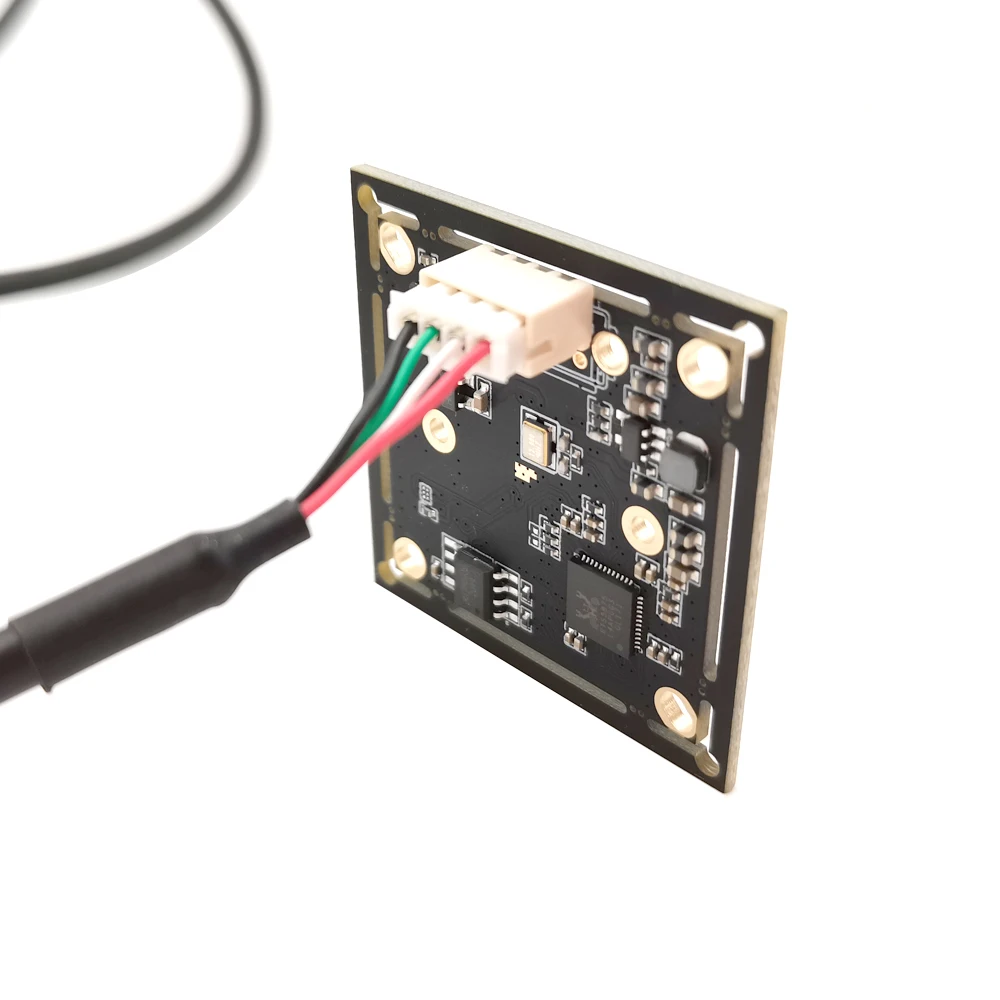

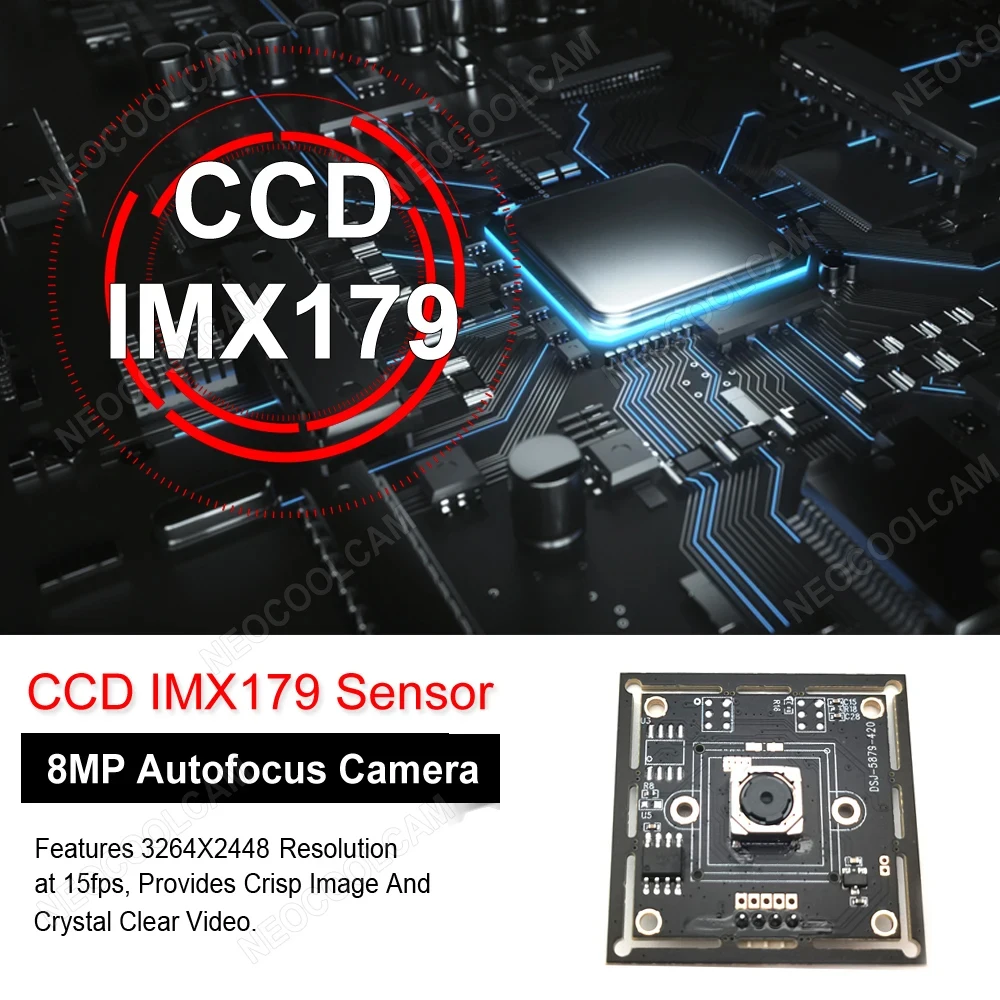

4K IMX179 USB Camera Module:
1. Use IMX179 Sensor.
2. Mainly used in high-resolution cameras, biometrics, industrial photography, industrial fields, high-definition surveillance and other fields.
The default 1080P resolution, the maximum resolution is 15fps 4K 8MP 3264×2448. You can set the resolution according to the video software. Our products support most common video software.
Product Description:
Sensor: IMX179
Lens Size: 1/3.2inch
Board size: 38X38mm
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 8MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
3264×2448 15fps
2592×1944 15fps
2048×1536 15fps
1920×1080 30fps
1600×1200 30fps
1280×720 30fps
960×540 30fps
800×600 30fps
640×480 30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 160mA~260mA
Working temperature: -10～70℃
Supported systems:
WinXP/Vista/Win7/Win8/Win10
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
